Balanced Wave Spiral Belt

100 Square Meter (MOQ)

Business Type Manufacturer, Supplier
Material Stainless Steel
Finishing Polished
Driven Type Electric
Click to view more

Preferred Buyer From

Location Anywhere in India

Product Details

10-20 Mtr, 20-30 Mtr
Corrosion Ressistant, Durable, Fine Finished, High Strength, Rust Proof
Balanced Weave Belt
Country of Origin

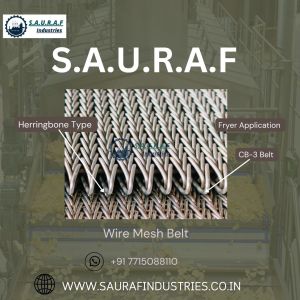

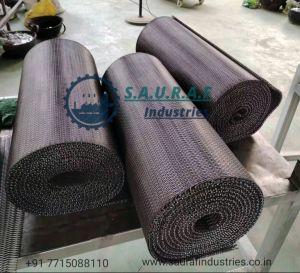

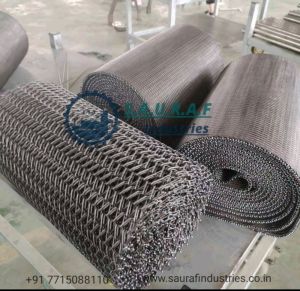

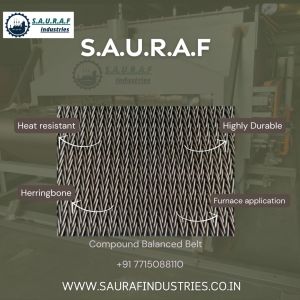

Radius conveyor belt also known balanced wave belt because it composed of balanced weaved spiral mesh, straight cross rods and chain links on both sides.

They are suitable for a wide range of applications, constructions and process conditions throughout the world. Radius belts offer a smooth continuous product flow running dependably year after year without damaging fragile and delicate products.

Features :

Stable design for smoothly, dependably and gentle movements. Money saving by securing the quality of products and reducing waste. Close-structure structure and ideal for high tensile load. Suitable for radius system, spiral, curved or straight conveyors. Wide temperature range from -196°C to +275°C. Complying with FDA standards.

Applications :

  • Food cryogenic cooling and freezing.
  • Vegetable blanching.
  • Vegetable blanching.
  • Drying installations.
  • Product lifting conveyors.
  • Baking or pasteurizing systems.
  • Conveyor machines.
  • Ovens, froster, annealing furnaces.
  • Frying, refrigeration and cleaning facilities.

Four main types of edges :

Radius conveyor belts are available in four different edges including traditional fabricated & welded ends, U-shaped chain link ends, roller chain link ends with or without side plates.

Traditional fabricated & welded ends :

As your requirements, radius conveyor belts can be The cold butting and welds which with minimum heats to ensure the structure of cross rods. 7 welded or fabricated to form a stable straight or curved convey system. connect the chain links and rods are welded toughly with minimum heats to ensure the structure of cross rods.

  • Material: stainless steel, AISI 304 or AISI 316; steel unprocessed, tin plated, zinc plated; special steel for high temperature ranges.
  • Width: up to approximately 5300mm.
  • Round wire spirals: diameter 0.80 to 5.00mm.

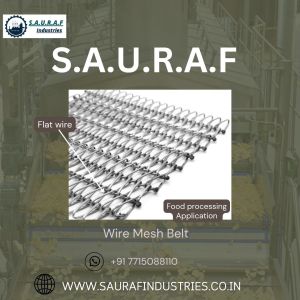

  • Flat wire spiral: cross 1.2 × 0.7mm to 6 × 3mm.
  • Cross bars: diameter 1.40 to 8mm.
  • Cross bar pitch: 6.0 to 52.0mm.
  • Speed: less than 1m per minute to about 20m per minute. (higher speed may affect the longevity of the belt)
  • For U-shaped chain link ends, three strength can be provided - normal chain link type (2mm in thickness), heavy duty chain link (3mm in thickness), heavy duty chain link with double reinforcing plates (3mm in thickness). Meanwhile, as your request, radius conveyor belts with middle chain links are available.

Yes! I am interested

Technical Specification

Style Pitch Radius / belt width Rod diameter Wire diameter U-shaped chain link height Width of U-shaped chain link
Normal chain link type 3/4" 2.2 5mm 2mm 11mm 28mm
Normal chain link type 1" 1.7 to 2.2 5mm 2mm 11mm 29mm
Heavy duty chain link type type 1" 2.2 5mm 3mm 11mm 36mm
Heavy duty chain link with double reinforcing plate links link type type 1" 1.7 to 2.2 5mm 3mm 11mm 41mm
With middle chain links link type type 3/4" 1.1 (inner) 5mm 2 or 3mm 11mm 28mm
