Twitter| Business Type | Manufacturer, Supplier |
| Material | Stainless Steel |
| Condition | New |
| Application | Moving Goods |
| Click to view more | |
Preferred Buyer From
| Location | Anywhere in India |
Product Details
Feature
Easy To Use, Excellent Quality, Long Life, Scratch Proof, Vibration Free
Loading Capacity
45-50kg
Type
Curved Conveyor Belt
Thickness
0-10mm
Belt Width
1000
Country of Origin
India
Belt Thickness
5
Length Of Belt
10 mtr
Product Code
SI/CMB/01
Port
By road
Payment Terms
L/C
Delivery Time
21 days
Packaging Details
Wooden box

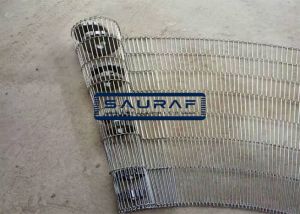

Ladder Conveyor Belt
The ladder conveyor belts are composed of cross rods jointed by S - shaped hooks chain links and U -shaped links. The belts with links are secured by welding a ring to the cross rod for containing the integrity of the ladder conveyor belts.
Details:
Material : steel, stainless steel 304, 316 or other materials as your request. Speed : from less than 1 m/min to 20 m/min. (High speed quick may affect the longevity of the conveyor belt)
Application :- Food processing: cooling, washing, drying, etc.
- Waste treatment facilities.
- Product sieving and sorting system.
- Blanching and product handling system.

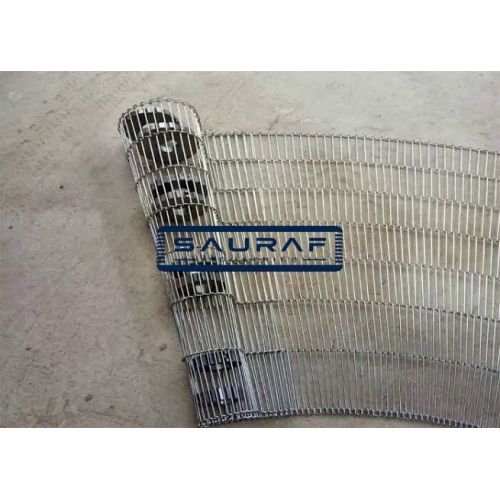

Ladder conveyor belts are available in straight types and curved types with a fixed inside radius
Technical Specification
| Properties | Ladder belt with S-shaped hook | Ladder belt with chain links | Ladder belt with U-shaped links |
| Pitch | 1/2" to 4" | 1" to 3" | 3/4", 1" and 1-1/13" |
| Width | 20mm to 1500mm | 25mm to 2000mm | 80mm to 2000mm |
| Diameter of cross rod | 2mm to 8mm | 4mm to 20mm | 5mm |
| Application | Running in straight & curved applications | Only running in straight application | Running in straight & curved applications |
