Honeycomb Belt Conveyor

Price : 3,000.00 / Square Meter
Get Best Price

MOQ : 100 Square Meter

Business Type Manufacturer, Supplier
Material Steel
Condition New
Application Moving Goods
Click to view more

Preferred Buyer From

Location Anywhere in India

Product Details

Feature
Easy To Use, Excellent Quality, Long Life, Scratch Proof, Vibration Free
Voltage
220 V
Loading Capacity
10-15kg
Type
Honeycomb Belt Conveyor
Thickness
0-10mm
Country of Origin
India

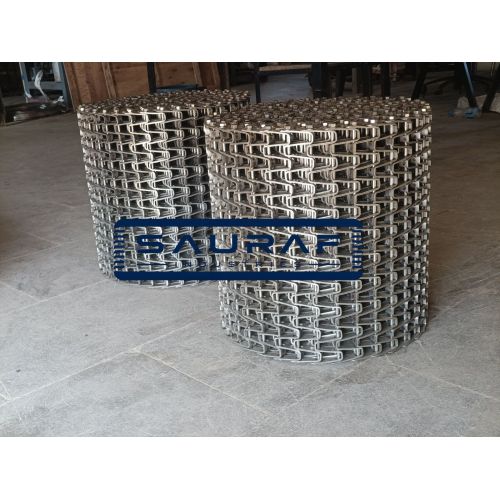

Flat Wire Conveyor Belts - Clinched Edge & Weld Edge Flat wire conveyor belts also known as Honeycomb belt, constructed of cross rods and flat metal strips, can provide an open mesh with flat surface, endless splicing, easy air circulation, excellent fluid drainage as well as ease of cleaning. Meanwhile, they are easy to maintain just replacing the section that is damaged or worn down.We also offer in double strip Honeycomb belt for Heavy duty purpose.

Two styles of belt edges:

The selvages the flat wire conveyor belts are available in clinched edge and welded edge as shown in the picture:

Features :

  • Large open area for excellent air circulation.
  • Optional side plates, reinforcing links and flights.
  • Strong edge avoids snagging or catching even there are conveyor protrusions.
  • Low maintenance.
  • Suitable for friction or sprocket drive
  • Anti-slipping and last for years if used well.
  • Durable structure prevents belt from deforming under heavy loads.

Application :

  • Food baking, cooling and freezing, etc.
  • Chemical industry.
  • Agricultural farming and harvesting.
  • Being used in discharging tower at ports.
  • Sorting, sieving and waste handling system.
  • Washing, drying, painting and transferring.
  • Acting as matting and drag mats.
Specification:

The description of flat wire conveyor belts is followed by its load capacity. Normally, there are standard duty belts and heavy duty belts for our customer to choose from according to their different needs. The standard duty type is sufficient for most applications and heavy duty type is ideal for heavy product conveying and some tougher conditions.

As your request, radius flat wire conveyor belts can also be supplied with right and left turn up to 180 degrees and reinforcing links to strengthen the outside edges of the belt. Its turning ability makes the belt capable to operate in limited space without obstacles and troublesome transfers.

Details:
  • Material: C-1045, C1050 high carbon steel, low carbon galvanized steel, stainless steel , 304, 316, etc.
  • Open size: 1" × 1", 1/2" × 1", 1/2" × 1/2" ,etc
  • Belt width: 50mm to 3500mm.
  • Belt speed: from less than 1 m/min to 25 m/min.
  • Temperature range: -30°C to 700°C.
  • Accessories: flight clips, lane dividers, edge guards or pin up attachments, etc.
